概述

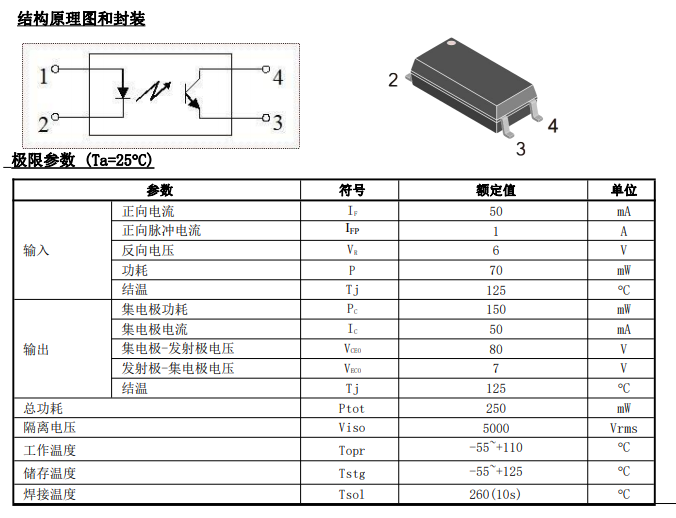

FT-X2-TLP1019是一塊小外形的貼片光電耦合器件，適合表面貼裝生產。FT-X2-TLP1019是由一個砷化鎵發光二極管和一個光電晶體管組成的光電耦合器，適用于高密度表面貼裝應用，如可編程控制器等。
特性
? 電流轉換比 (CTR)范圍: 50~600% （IF =5mA ,VCE =5V）
? 輸入-輸出隔離電壓 (Viso=5000 Vrms)
? 集電極-發射極擊穿電壓 BVCEO≥80V
? 工作溫度：-55~110°C
? 8mm 長爬電距離
? UL 認證（NO.:E497745）
? 符合 EU REACH 和 RoHS
Applications
? 開關電源，智能電表
? 工業控制，測量儀器
? 辦公設備，比如復印機
? 家用電器，比如空調、風扇、熱水器等
?
?
?
?
?
