概述

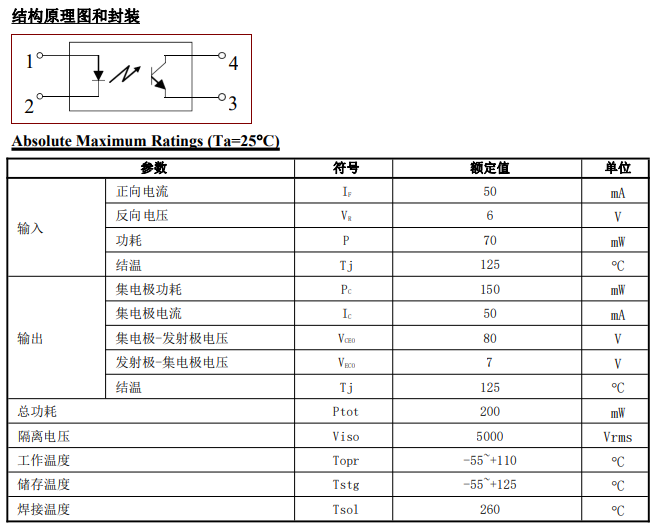

FT-X2-TLP785是可控制的光電耦合器件，電路之間的信號傳輸，使之前端與負載完全隔離，目的在于增加安全性，減小電路干擾，減化電路設計。四引腳封裝，三種形式（DIP、DIP-M、SMD）
特性
? 電流轉換比 (CTR)范圍: 50~600% （IF =5mA ,VCE =5V）
? 輸入-輸出隔離電壓 (Viso=5000 Vrms)
? 集電極-發射極擊穿電壓 BVCEO≥80V
? UL 認證（NO.:E497745）
? 符合EU REACH 和RoHS
? CQC 認證（NO:CQC20001238665）
Applications
? 開關電源，智能電表
? 工業控制，測量?jī)x器
? 辦公設備，比如復印機
? 家用電器，比如空調、風扇、熱水器等
?
?
?
?
?
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks poliFT-X2- of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
