Features
(1) Current transfer ratio(CTR) : MIN. 50% at IF = 5mA, VCE = 5V, Ta=25 ℃
(2) High input-output isolation voltage.(VISO=3,750Vrms)
(3) Collector and emitter Voltage : 80V(MIN)
(4) Operating Temperature :-55 ℃ to 125 ℃
(5) Safety approval
UL approved (No.E323844)
VDE approved (No.40029733)
(6) In compliance with RoHS, REACH standards
(7) MSL Class Ⅰ
2 ．Instructions
The FT-88-3H7-4-(GK) series device contains four infrared led and four photo transistor detector.They are encapsulated in a 16-pin SOP, free of halogens and Sb2O3
3 ．Application Range
(1) Mixed PCB substrate requiring high density installation
(2) Programmable controller
(3) System apparatus and measuring instruments
4 ．Max Absolute rated Value (Normal Temperature=25℃)
|
Parameter |
Symbol |
Rated Value |
Unit |
|
|
Input |
Forward Current |
IF |
50 |
mA |
|
Peak forward current(t= 10us) |
IFM |
1 |
A |
|
|
Reverse Voltage |
VR |
6 |
V |
|
|
Power Dissipation |
P |
70 |
mW |
|
|
Junction Temperature |
Tj |
125 |
℃ |
|
|
Output |
Collector and emitter Voltage |
VCEO |
80 |
V |
|
Emitter and collector Voltage |
VECO |
7 |
||
|
Collector Current |
IC |
50 |
mA |
|
|
Power Dissipation |
PC |
100 |
mW |
|
|
Junction Temperature |
Tj |
125 |
℃ |
|
|
Total Power Dissipation |
Ptot |
170 |
mW |
|
|
* 1 Insulation Voltage |
Viso |
3750 |
Vrms |
|
|
Rated Impulse Insulation Voltage |
VIORM |
630 |
V |
|
|
Operating Temperature |
Topr |
-55 to + 125 |
℃ |
|
|
Storage Temperature |
Tstg |
-55 to + 150 |
||
|
*2 Soldering Temperature |
Tsol |
260 |
||
* 1. AC For 1 Minute, R.H. = 40 ~ 60%
Isolation voltage shall be measured using the following method.
(1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side
(2) The isolation voltage tester with zero-cross circuit shall be used.
(3) The waveform of applied voltage shall be a sine wave.
*2.soldering time is 10 seconds
5 ．Opto-electronic Characteristics(Normal Temperature=25℃)
|
Parameter |
Symbol |
Min |
Typ.* |
Max |
Unit |
Condition |
|
|
Input |
Forward Voltage |
VF |
--- |
1.2 |
1.4 |
V |
IF=20mA |
|
Reverse Current |
IR |
--- |
--- |
5 |
μA |
VR=5V |
|
|
Terminal Capacitance |
Ct |
--- |
30 |
250 |
pF |
V=0, f= 1KHz |
|
|
Output |
Collector Dark Current |
ICEO |
--- |
--- |
100 |
nA |
VCE=20V IF=0mA |
|
Collector-Emitter Breakdown Voltage |
BVCEO |
80 |
--- |
--- |
V |
IC=0. 1mA IF=0mA |
|
|
Emitter-Collector Breakdown Voltage |
BVECO |
7 |
--- |
--- |
V |
IE=0. 1mA IF=0mA |
|
|
Transforming Characteristics |
* 1 Current Transfer Ratio |
CTR |
50 |
--- |
600 |
% |
IF=5mA VCE=5V |
|
Collector Current |
IC |
2.5 |
--- |
30 |
mA |
||
|
Collector-Emitter Saturation Voltage |
VCE(sat) |
--- |
--- |
0.4 |
V |
IF=8mA IC= 2.4mA |
|
|
Insulation Impedance |
Riso |
5 × 1010 |
1 × 1011 |
--- |
Ω |
DC 500V 40~60%R.H. |
|
|
Floating Capacitance |
Cf |
--- |
0.6 |
1 |
pF |
V=0, f= 1MHz |
|
|
Response Time |
tr |
--- |
2 |
18 |
μs |
VCE=5V, IC=2mA, RL= 100Ω, f= 100Hz |
|
|
Descend Time |
tf |
--- |
3 |
18 |
μs |
||
- CurrentConversion Ratio = IC / IF × 100%
6 ．Rank table of current transfer ratio CTR
|
MODEL NO. |
CTR Rank |
Min. |
Max. |
Condition |
Unit |
|
FT-88-3H7-4-(GK) |
GB |
100 |
400 |
IF=5mA, VCE=5V, Ta=25℃ |
% |
|
GR |
100 |
300 |
IF=5mA, VCE=5V, Ta=25℃ |
% |
|
|
No Mark |
50 |
600 |
IF=5mA, VCE=5V, Ta=25℃ |
% |
- Current Conversion Ratio= IC / IF × 100%
7 ．Order Information
Part Number
FT-88-3H7-4X-W-Y-Z-(GK)
Note
X = CTR Rank (GB , GR or none)
W = Tape and reel option (TA or TA1).
Y = ‘V ’ code for VDE safety (This options is not necessary).
Z = ‘G ’ code for Halogen free .
GK = Field code.
* VDECode can be selected.
|
Option |
Description |
Packing quantity |
|
TA1 |
Surface mount lead form (low profile) + TA1 tape & reel option |
2000 units per reel |
|
TA |
Surface mount lead form (low profile) + TA tape & reel option |
2000 units per reel |

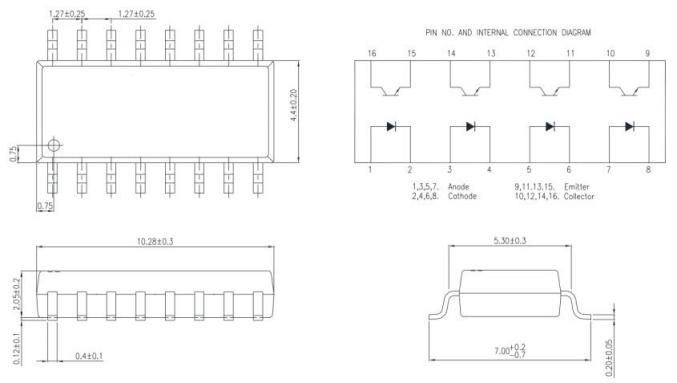

8.Outer Dimension

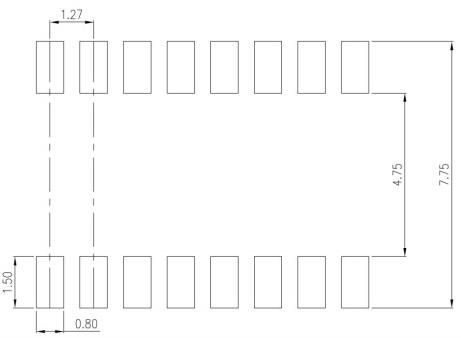

9.Recommended Foot Print Patterns (Mount Pad) (Unit:mm)
10.Taping Dimensions

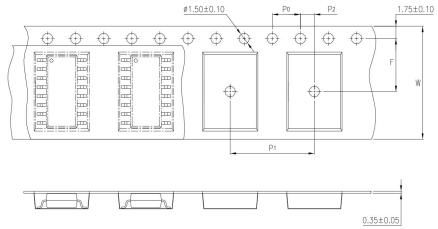

(1)FT-88-3H7-4-TA1-(GK)

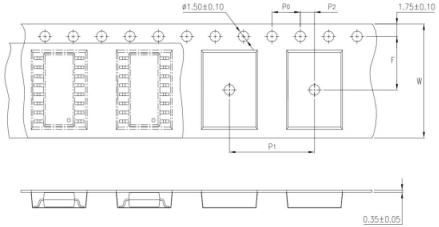

(2)FT-88-3H7-4-TA-(GK)
|
type |
Symbol |
Dimensions: mm (in.) |
|
bandwidth |
W |
16±0.3 (0.47) |
|
pitch |
P0 |
4±0. 1 (0. 15) |
|
pitch |
F |
7.5±0. 1 (0.217) |
|
P2 |
2±0. 1 (0.079) |
|
|
interval |
P1 |
12±0. 1 (0.315) |
11.Reliability Test
|
NO. |
ITEMS |
Reliability Testing |
||||
|
QTY. (Pcs) |
Condition |
Process |
Device |
Standard |
||
|
1 |
RSH 耐焊接熱 |
22 |
260±5℃ |
10s/3 次 |
錫爐 |
JESD22-A106 |
|
2 |
HTSL 高溫存儲 |
77 |
125℃ |
168 hrs |
高溫烤箱 測試儀 |
JESD22-A103 |
|
500 hrs |
||||||
|
1000 hrs |
||||||
|
3 |
LTSL 低溫存儲 |
77 |
-55℃ |
168 hrs |
低溫箱 測試儀 |
JESD22-A119 |
|
500 hrs |
||||||
|
1000 hrs |
||||||
|
4 |
TC 溫度循環 |
77 |
H:125℃ 15min ∫5min L:-55℃ 15min |
300 cycle |
冷熱沖擊機 |
JESD22-A104 |
|
5 |
TS 溫度沖擊 |
77 |
H:100℃ 5min ∫ 15s L:-40℃ 5min |
300 cycle |
冷熱沖擊機 |
JESD22-A106 |
|
6 |
HTOL 高溫操作 |
77 |
110。C IF= 10mA Vce=5V |
168 hrs |
高溫烤箱 測試儀、老化電路板 |
JESD22-A108 |
|
500 hrs |
||||||
|
1000 hrs |
||||||
|
7 |
ESD-HBM 人體模式 |
22 |
≥8KV 1Cycle |
1次 |
ESD靜電測 試儀 |
JESD22-A114 |
|
8 |
SD 可焊性 |
22 |
Pb-free 245±5℃ |
5S/1次 |
錫爐 |
JESD22-B102 |
|
9 |
HTRB 高溫反向偏壓 |
77 |
HTRB @125℃ Vce=80v |
168 hrs |
高溫烤箱 , 測試儀 |
JESD22-A103 |
|
500 hrs |
||||||
|
1000 hrs |
||||||
|
10 |
H3TRB 溫濕度反向偏 壓，壽命試驗 |
77 |
H3TRB 85℃,85%RH Vce=80v |
168 hrs |
恒溫恒濕 機，測試儀 |
JESD22-A101 |
|
500 hrs |
||||||
|
1000 hrs |
||||||
|
11 |
Autoclave 壓力鍋 |
77 |
Ta= 121 ℃, 100%RH,2atm |
96hrs |
壓力鍋 |
JESD22-A102 |
