Description

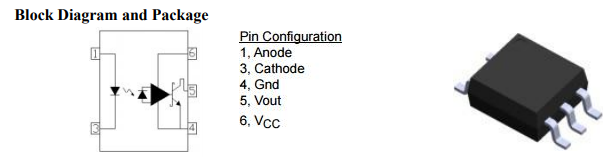

These small outline high CMR, high speed, logic gate optocouplers are single channel devices in a five lead miniature footprint.
They are electrically equivalent to the following Agilent optocouplers (except there is no output enable feature)
Features
? Surface Mountable
? Very Small, Low Profile Registered Package Outline
? Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes
? High speed 10Mbit/s
? Guaranteed performance from -40 to 85℃
? Logic gate output
? High isolation voltage between input and output (Viso=3750 V rms )
Applications
? Isolated Line Receiver
? Simplex/Multiplex Data Transmission
? Computer-Peripheral Interface
? Microprocessor System Interface
? Digital Isolation for A/D, D/A Conversion
? Switching Power Supply
? Instrument Input/Output Isolation
? Ground Loop Elimination
? Pulse Transformer ReplacementOffice equipment such as copiers
?
?
?
?
?
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
