Features
●?Current transfer ratio(CTR : MIN. 50% at IF=5mA, VCE=5V)
●?High input-output isolation voltage:(VISO: 5,000Vrms)
●?Compact dual-in-line package

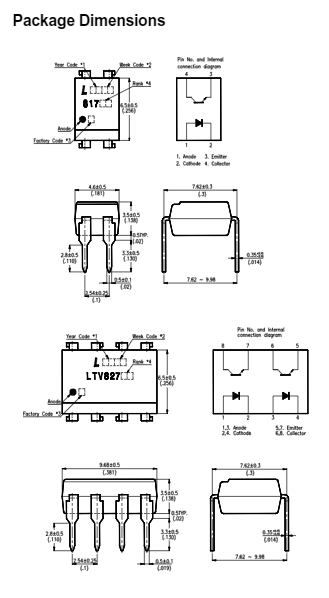

? ? ?LTV-817 : 1-channel type
? ? ?LTV-827 : 2-channel type

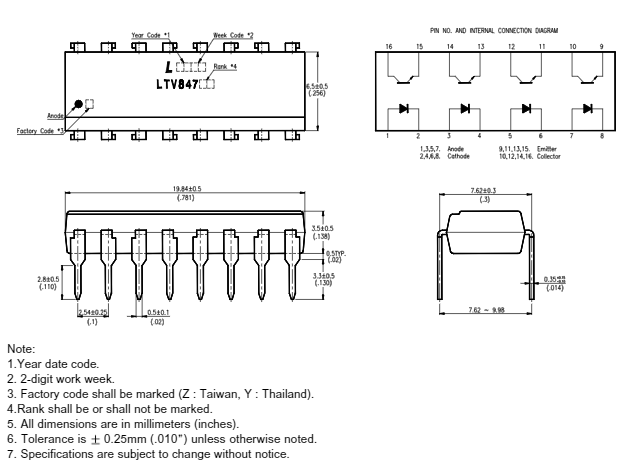

? ? ?LTV-847 : 4-channel type
●?UL approved (No. E113898)
●?TUV approved (No. R9653630)
●?CSA approved (No. CA91533-1)
●?FIMKO approved (No. 202634)
●?NEMKO approved (No. P98101945)
●?DEMKO approved (No. 307857)
●?SEMKO approved (No. 9832157/01-03)
●?VDE approved (No. 094722)
●?Options available :
-Leads with 0.4"(10.16mm)spacing (M Type)
-Leads bends for surface mounting(S Type)
-Tape and Reel of Type I for SMD(Add"-TA"Suffix)
-Tape and Reel of Type II for SMD(Add"-TA1"Suffix)
-VDE 0884 approvals (Add"-V"Suffix)
?
Applications
1. Computer terminals.
2. System appliances, measuring instruments.
3. Registers, copiers, automatic vending machines.
4. Electric home appliances such as fan heaters, etc.
5. Signal transmission between circuits of different?potentials and impedances.
?
?北億纖通專業研發生產并完美替換：LTV-817,LTV-817光藕,LITEON LTV-817,光寶LTV-817,LITEON光寶 LTV-817光藕.100%完美兼容LITEON光寶 LTV-817光藕.我們的產品海量交付給華為、中興、國防、軍工、航空、航天、兵器、艦船、雷達、電子、工業、核工業、核武器、軍事、電力、鐵路、醫療、交通、通信、電信、移動、聯通、政府、國防科技等大專院校及科研院所
?
?
?
?
?
?
?
?
