DESCRIPTION
The PS2711-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SOP for high density applications.
The package is an SOP (Small Outline Package) type for high density mounting applications.
FEATURES
? High current transfer ratio (CTR = 200% TYP. @ IF = 1mA)
? High isolation voltage (BV = 3 750 Vr.m.s.)

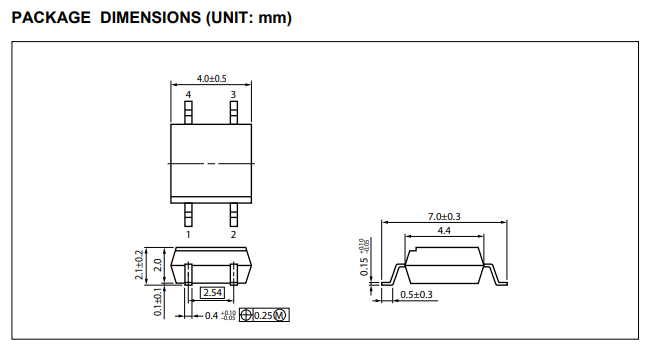

? Small and thin package (4-pin SOP)
? Ordering number of taping product: PS2711-1-F3: 3 500 pcs/reel
? Pb-Free product
? Safety standards
UL approved: UL1577, Single protection
CSA approved: CAN/CSA-C22.2 No. 62368-1, Basic/Supplementary insulation
VDE approved: DIN EN 60747-5-5 (Option)
APPLICATIONS
? Programmable logic controllers
? Small power supply
? Hybrid IC
? Modem/FAX
?
?
?
?
