Features
●?Current transfer ratio ( CTR : MIN. 50% at IF= 5mA, VCE= 5V, Ta=25℃)
●?High input-output isolation voltage ( Viso = 5,000Vrms )
●?High collector-emitter voltage ( VCEO= 70V )
●?Temperature range -55℃?to 110 ℃
●?Creepage distance > 8mm
●?Employs double transfer mold technology

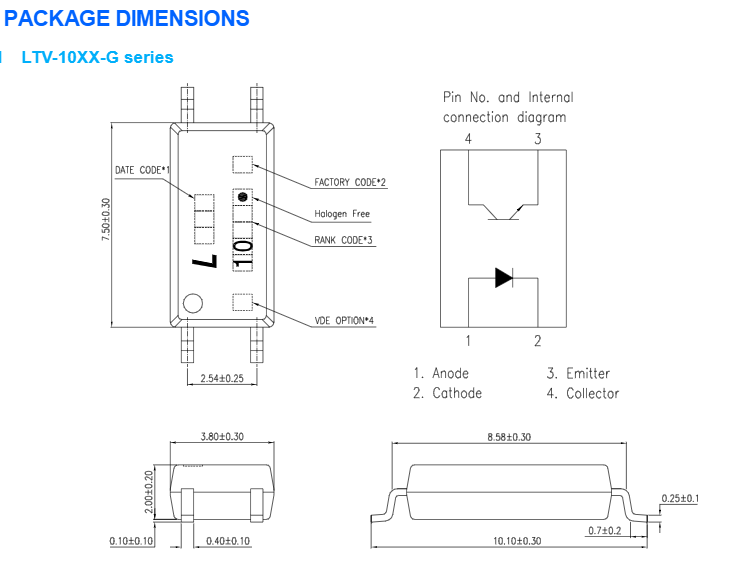

●?Long Mini-flat package : 2.3mm profile : LTV-10XX series
●?Halogen Free
●?8P-Free
●?Safety approval
? ? ?UL 1577
? ? ?Cul CA5A
? ? ?VDE DIN EN60747-5-5 (VDE 0884-5)
? ? ?CQC GB4943.1-2011/ GB8898-2011 (meet Altitude up to 5000m)
? ? ?Nordic Safety ( FIMKO/NEMKO/SEMKO/DEMKO)
●?RoHS Compliance
? ? ?All materials be used in device are followed EU RoHS directive (No.2002/95/EC).
?
Applications
●?Hybrid substrates that require high density mounting.
●?Programmable controllers
?
北億纖通專業研發生產并完美替換：LTV-10XX-G ,LTV-10XX-G 光藕,LITEON LTV-10XX-G ,光寶LTV-10XX-G ,LITEON光寶 LTV-10XX-G 光藕.100%完美兼容LITEON光寶 LTV-10XX-G 光藕.我們的產品海量交付給華為、中興、國防、軍工、航空、航天、兵器、艦船、雷達、電子、工業、核工業、核武器、軍事、電力、鐵路、醫療、交通、通信、電信、移動、聯通、政府、國防科技等大專院校及科研院所
?
?
?
?
?
?
?
?
